SL SERIES
Shadow SERIES LIGHT TOWERS WITH 4.5’ to 6.5’ REACH
SHADOW SERIES: COMPACT UNIT

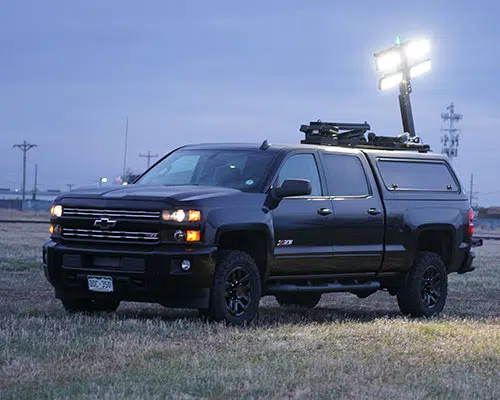

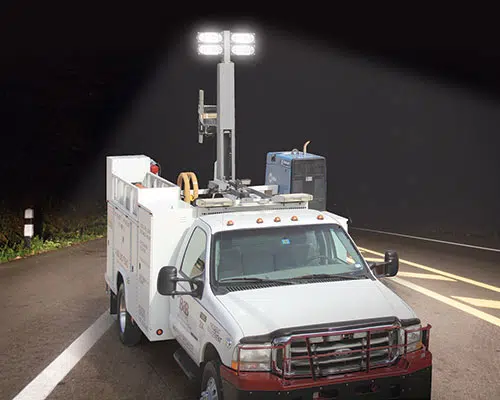

The Shadow Series are among Command Light’s most compact light towers for sale when space is at a premium. These units have a reach of more than 4 feet from its base (or up to 6.5’ with optional long arm), weight approximately 65 lbs., and are manufactured using aircraft-grade aluminum alloy for strength. Thanks to this compact size, these units can fit on SUVs, vans and pickup trucks, all while featuring 355 degrees of rotation and Command Light’s patented movement that allows different sections of the tower to move to direct scene lighting.
The SL Series is available with quartz halogen bulbs or LED light tower fixtures in the following:

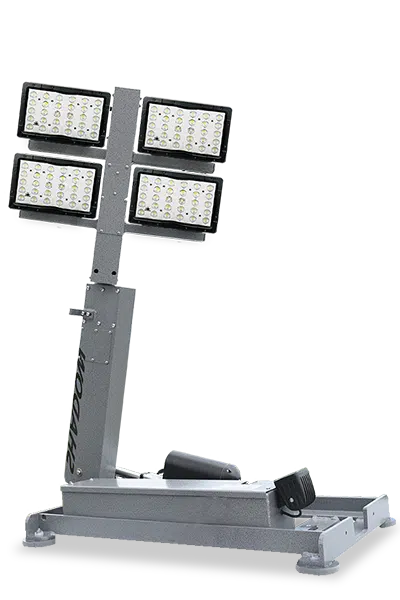

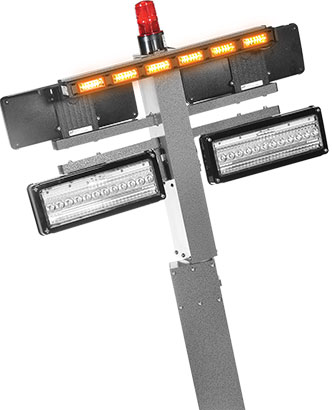

4-Head Towers

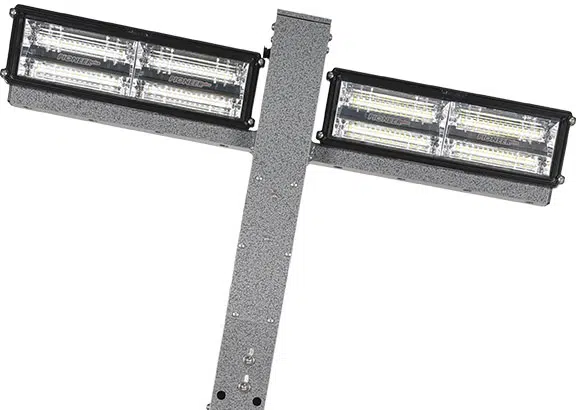

2-Head Towers

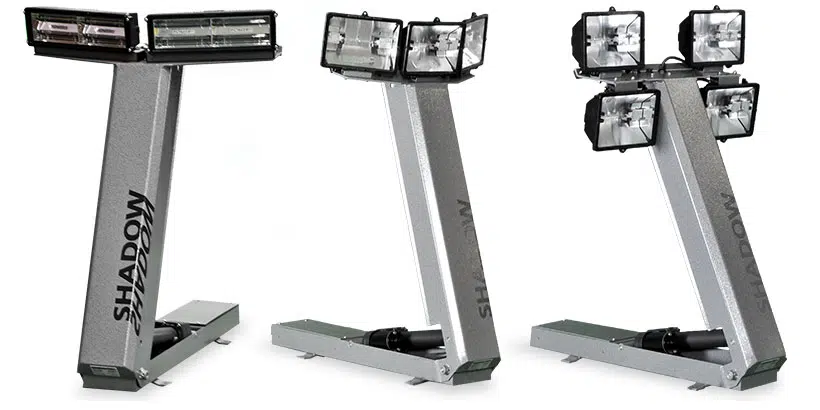

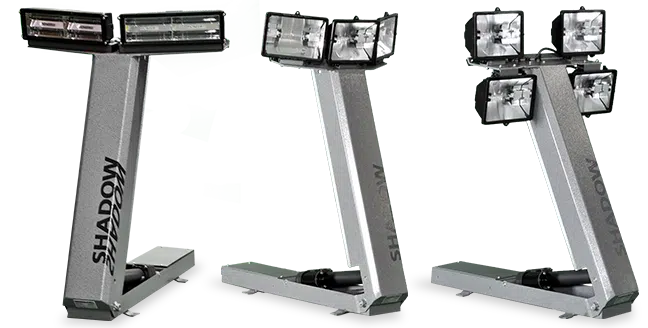

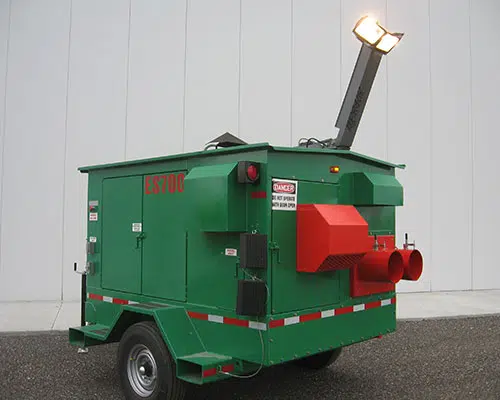

STRAIGHT SHADOW
SHADOW SLIM
ELEVATED LIGHTING WITHOUT ROTATION
Tight budget? The Straight Shadow is one of Command Light’s most economical solutions in maintaining efficient scene lighting. Featuring only elevated capabilities (and not rotation), this unit offers a 3.5’ reach from its base. The Straight Shadow also can be easily modified to elevate cameras and antennas.
THE SHADOW SLIM

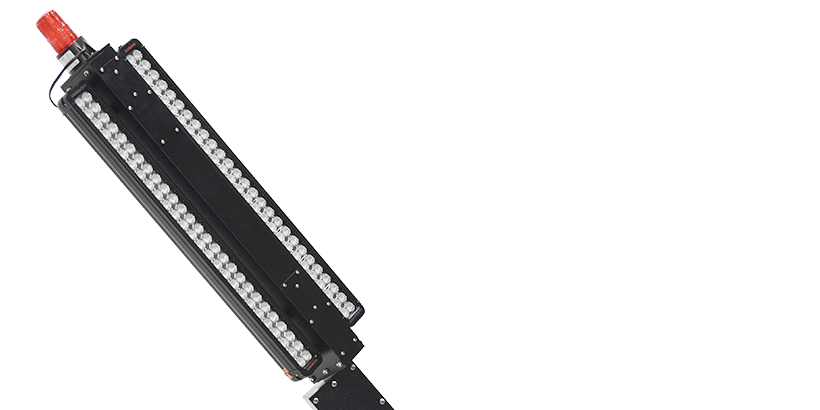

Introducing Command Light’s newest light tower — the SL Slim, part of our Shadow Series lineup with 4.5’ reach. This tower touts a narrow design, much like its Knight (KL) Slim counterpart. The SL Slim nests at 8” x 63” x 11”, weighs only 65 lbs. and produces 57,000 lumens with (2) FireTech FT-MB-2.27 Minibrow LEDs, available in AC (Model SL423A-H2) or DC power (Model SL432D-H2).
VIEW DETAILS
SL specifications
FOR INDIVIDUAL SPEC SHEETS, CLICK THE MODEL NUMBER IN THE CHART

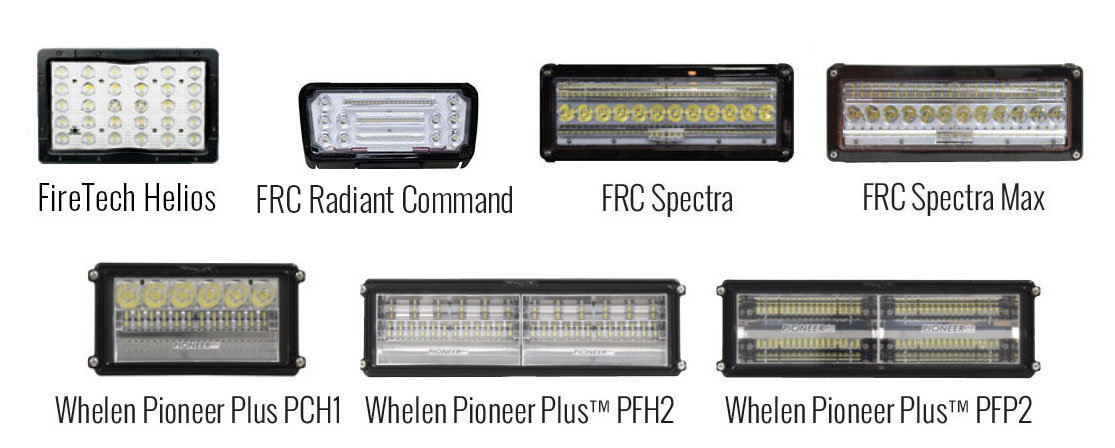

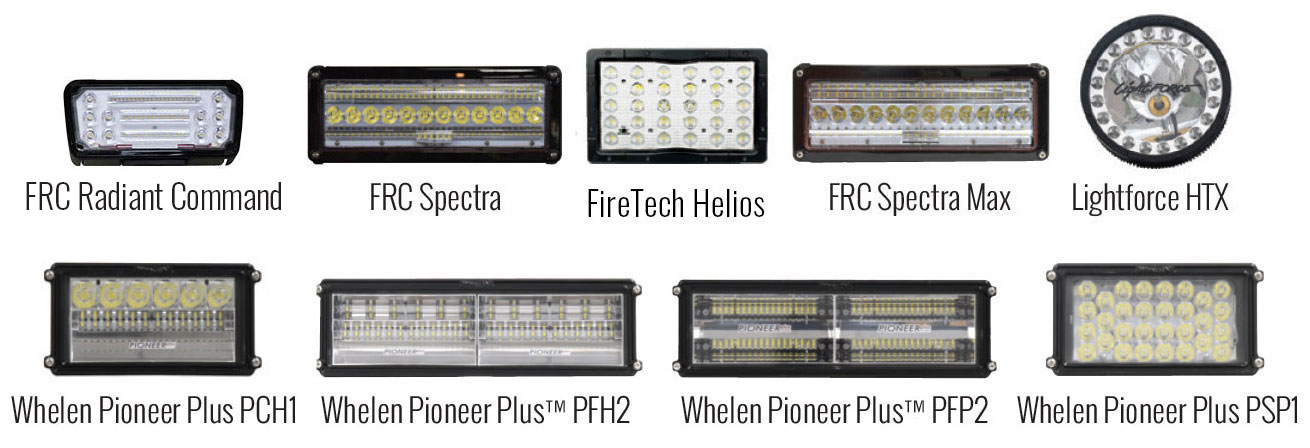

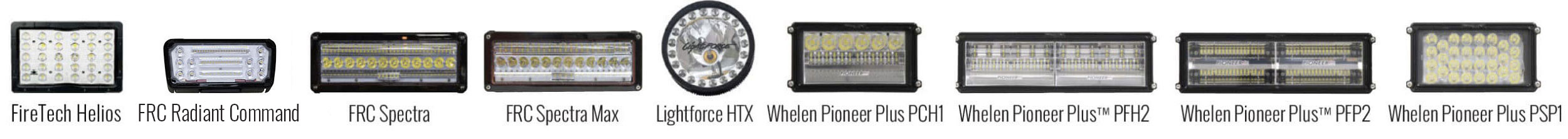

LEDs
FireTech Helios
FRC Radiant Command
FRC Spectra

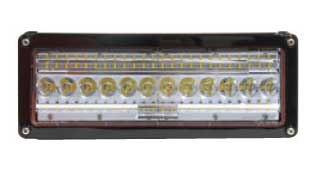

FRC Spectra Max
Lightforce HTX
Whelen Pioneer
Plus™ PFP2
Whelen Pioneer
Plus™ PCH1
Whelen Pioneer
Plus™ PFP2
Whelen Pioneer
Plus™ PSP1
| AC/DC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SL442A-CH | FireTech Helios 60W | 12V DC + 115V or 230V AC 420W | 14,000 lumens | 56,000 lumens | 8" x 54" x28" 205 mm x 1,375 mm x 710 mm | 55" x 36" x 28" 1,395 mm x 915 mm x 710 mm | 75 lbs 35 kg |
| SL442A–FR | FRC Radiant Command 120W | 12V DC + 115V or 230V AC 660W | 17,000 lumens | 68,000 lumens | 8" x 54" x 28" 205 mm x 1,375 mm x 710 mm | 55" x 36" x 28" 1,395 mm x 915 mm x 710 mm | 75 lbs 35 kg |
| SL442A–FS | FRC Spectra 220W | 12V DC + 115V or 230V AC 1,060W | 20,000 lumens | 80,000 lumens | 8" x 54" x 34" 205 mm x 1,375 mm x 865 mm | 55" x 36" x 34" 1,395 mm x 915 mm x 865 mm | 75 lbs 35 kg |
| SL442A–FX | FRC Spectra Max 335W | 12V DC + 115V or 230V AC 1,520W | 28,000 lumens | 112,000 lumens | 8" x 54" x 34" 205 mm x 1,375 mm x 865 mm | 55" x 36" x 34” 1,395 mm x 915 mm x 865 mm | 75 lbs 35 kg |
| SL442A–W1 | Whelen PSP1 75W | 12V DC + 115V or 230V AC 480W | 8,517 lumens | 34,068 lumens | 8” x 54” x 22” 205 mm x 1,375 mm x 560 mm | 55” x 36" x 22" 1,395 mm x 915 mm x 560 mm | 75 lbs 35 kg |
| SL442A–W2 | Whelen Pioneer Plus PFP2 150W | 12V DC + 115V or 230V AC 780W | 20,442 lumens | 81,768 lumens | 8" x 54" x 33" 205 mm x 1,375 mm x 835 mm | 55" x 36" x 33" 1,395 mm x 915 mm x 835 mm | 75 lbs 35 kg |
| DC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SL442D–AR | Akron Revel SL 110W | 12V DC – 52 amps 960W | 14,000 lumens | 56,000 lumens | 8" x 54" x 34" 205 mm x 1,375 mm x 865 mm | 55" x 36" x 34" 1,395 mm x 915 mm x 865 mm | 75 lbs 35 kg |
| SL442D-CH | FireTech Helios 60W | 12V DC – 35 amps 420W | 14,000 lumens | 56,000 lumens | 8" x 54" x 28" 205 mm x 1,375 mm x 710 mm | 55" x 36 " x 28" 1,395 mm x 915 mm x 710 m | 75 lbs 35 kg |
| SL442D–FR | FRC Radiant Command 120W | 12V DC – 55 amps 660W | 17,000 lumens | 68,000 lumens | 8" x 54" x 28" 205 mm x 1,375 mm x 710 mm | 55" x 36" x 28" 1,395 mm x 915 mm x 710 mm | 75 lbs 35 kg |
| SL442D–FS | FRC Spectra 220W | 12V DC – 90 amps 1,100W | 20,000 lumens | 80,000 lumens | 8" x 54" x 34" 205 mm x 1,375 mm x 865 mm | 55" x 36" x 34" 1,395 mm x 915 mm x 865 mm | 75 lbs 35 kg |
| SL442D–FX | FRC Spectra Max 230W | 12V DC - 90 amps 1,100W | 28,000 lumens | 112,000 lumens | 8" x 54" x 34" 205 mm x 1,375 mm x 865 mm | 55" x 36" x 34" 1,395 mm x 915 mm x 865 mm | 75 lbs 35 kg |
| SL442D-LX | Lightforce HTX LED/HID 150W | 12V DC – 65 amps 780W | 13,500 lumens | 54,000 lumens | 8" x 56" x 23" 205 mm x 1,420 mm x 585 mm | 57" x 46" x 23" 1,450 mm x 1,170 mm x 585 mm | 75 lbs 35 kg |
| SL442D–W1 | Whelen Pioneer Plus PCH1 75W | 12V DC* – 40 amps 480W | 10,130 lumens | 40,520 lumens | 8" x 54" x 22" 205 mm x 1,375 mm x 560 mm | 55" x 36" x 22" 1,395 mm x 915 mm x 560 mm | 75 lbs 35 kg |
| SL442D–W2 | Whelen Pioneer Plus PFH2 150W | 12V DC* – 65 amps 780W | 20,261 lumens | 81,044 lumens | 8" x 54" x 33" 205 mm x 1,375 mm x 835 mm | 55" x 36" x 33" 1,395 mm x 915 mm x 835 mm | 75 lbs 35 kg |

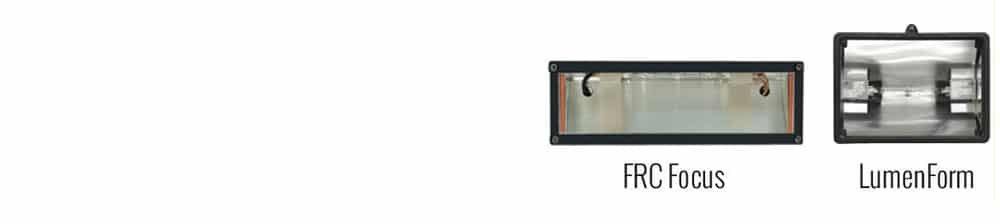

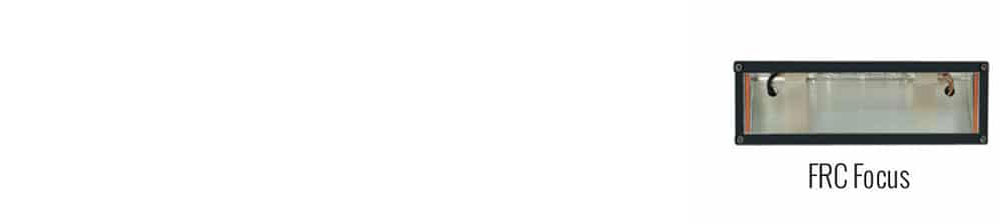

QUARTZ HALOGEN
FRC Focus

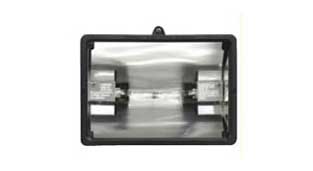

LumenForm
| AC/DC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SL447A–FF | FRC Focus 750W | 12V DC + 115V or 230V AC 3,180W | 19,600 lumens | 78,400 lumens | 8” x 54” x 23” 205 mm x 1,375 mm x 585 mm | 49.5" x 52" x 23" 1,260 mm x 1,320 mm x 585 | 70 lbs 32 kg |
| SL445A–LF | Lumenform 500W | 12V DC + 115V or 230V AC 2,180W | 11,100 lumens | 44,400 lumens | 8" x 54" x 22" 205 mm x 1,375 mm x 560 mm | 55" x 36" x 22" 1,395 mm x 915 mm x 560 mm | 70 lbs 32 kg |

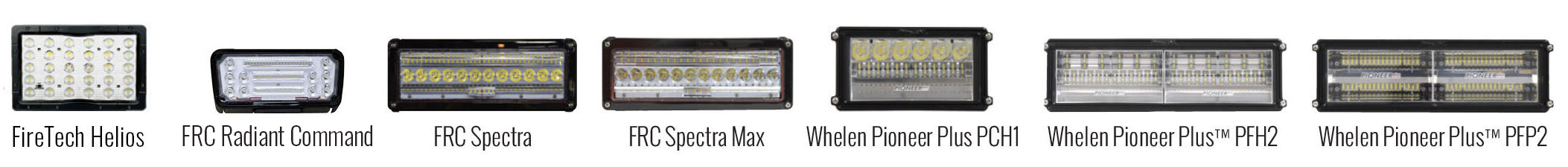

LEDs
FireTech Helios
FRC Radiant Command
FRC Spectra
FRC Spectra Max
Whelen Pioneer
Plus™ PFP2
Whelen Pioneer
Plus™ PCH1
Whelen Pioneer
Plus™ PFP2
| AC/DC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SL422A-CH | FireTech Helios 60W | 12V DC + 115V or 230V AC 300W | 14,000 lumens | 28,000 lumens | 8" x 54" x 28" 205 mm x 1,375 mm x 710 mm | 55" x 36 " x 28" 1,395 mm x 915 mm x 710 mm | 65 lbs 30 kg |
| SL422A–FR | FRC Radiant Command 120W | 12V DC + 115V or 230V AC 420W | 17,000 lumens | 34,000 lumens | 8" x 54" x 28" 205 mm x 1,375 mm x 710 mm | 55" x 36 " x 28" 1,395 mm x 915 mm x 710 mm | 65 lbs 30 kg |
| SL422A–FS | FRC Spectra 220W | 12V DC + 115V or 230V AC 620W | 20,000 lumens | 40,000 lumens | 8" x 54" x 34" 205 mm x 1,375 mm x 865 mm | 55" x 36 " x 34" 1,395 mm x 915 mm x 865 m | 65 lbs 30 kg |
| SL422A–FX | FRC Spectra Max 335W | 12V DC + 115V or 230V AC 850W | 28,000 lumens | 56,000 lumens | 8" x 54" x 34" 205 mm x 1,375 mm x 865 mm | 55" x 36 " x 34" 1,395 mm x 915 mm x 865 mm | 65 lbs 30 kg |
| SL422A–W2 | Whelen Pioneer Plus PFP2 150W | 12V DC + 115V or 230V AC 480W | 20,442 lumens | 40,884 lumens | 8” x 54” x 33” 205 mm x 1,375 mm x 840 mm | 55” x 36 “ x 33” 1,395 mm x 915 mm x 840 mm | 65 lbs 30 kg |
| DC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SL422D–FR | FRC Radiant Command 120W | 12V DC – 35 amps 420W | 17,000 lumens | 34,000 lumens | 8” x 54” x 28” 205 mm x 1,375 mm x 710mm | 55” x 36 “ x 28” 1,395 mm x 915 mm x 710 mm | 65 lbs 30 kg |
| SL422D–FS | FRC Spectra 220W | 12V DC – 42 amps 620W | 20,000 lumens | 40,000 lumens | 8” x 54” x 34” 205 mm x 1,375 mm x 865 mm | 55” x 36 “ x 34” 1,395 mm x 915 mm x 865 mm | 65 lbs 30 kg |
| SL422D–FX | FRC Spectra Max 230W | 12V DC – 54 amps 640W | 28,000 lumens | 56,000 lumens | 8" x 54" x 34" 205mm x 1,375 mm x 865 mm | 55" x 36 " x 34" 1,395 mm x 915 mm x 865 mm | 65 lbs 30 kg |
| SL422D–W1 | Whelen Pioneer Plus PCH1 75W | 12V DC* – 20 amps 330W | 10,130 lumens | 20,260 lumens | 8” x 54” x 22” 205 mm x 1,375 mm x 560 mm | 55” x 36 “ x 22” 1,395 mm x 915 mm x 560 mm | 65 lbs 30 kg |
| SL422D–W2 | Whelen Pioneer Plus PFH2 150W | 12V DC* – 35 amps 480W | 20,261 lumens | 40,552 lumens | 8” x 54” x 33” 205 mm x 1,375 mm x 840 mm | 55” x 36 “ x 33” 1,395 mm x 915 mm x 840 mm | 65 lbs 30 kg |
QUARTZ HALOGEN
FRC Focus
| AC/DC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SL428A–FF | FRC Focus 1,000W | 12V DC + 230V AC 2,180W | 22,000 lumens | 44,000 lumens | 8” x 54” x 34” 205 mm x 1,375 mm x 865 mm | 55” x 36 “ x 34” 1,395 mm x 915 mm x 865 mm | 65 lbs 30 kg |
| SL429A–FF | FRC Focus 1,500W | 12V DC + 230V AC 3,180W | 35,000 lumens | 70,000 lumens | 8” x 54” x 34” 205 mm x 1,375 mm x 865 mm | 55” x 36 “ x 34” 1,395 mm x 915 mm x 865 mm | 65 lbs 30 kg |

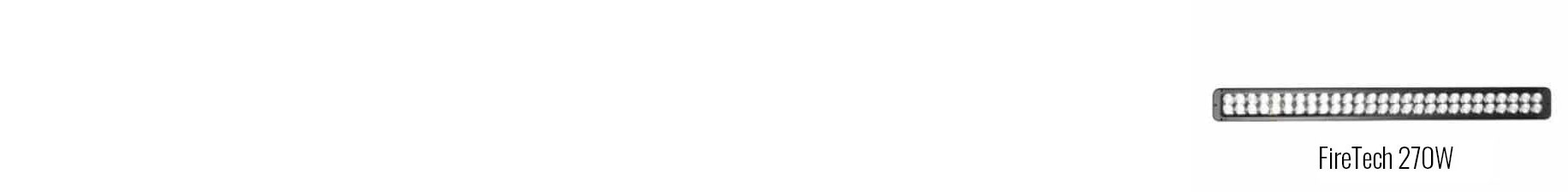

LEDs

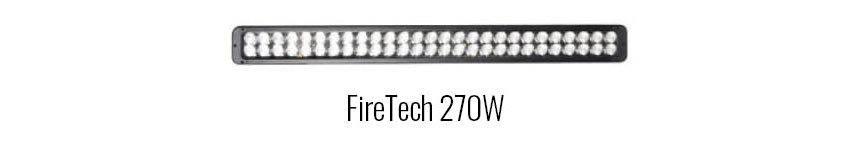

FireTech 270W
| AC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SL423A-H2 | (2) FireTech – 270w | 115V AC - 720w | 28,500 lumens | 57,000 lumens | 8" x 63" x 11" 605 mm x 1,600 mm x 280 mm | 66" x 42" x 11" 1,675 mm x 1,600 mm x 280 mm | 65 lbs 35 kg |
| DC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SL423D-H2 | (2) FireTech – 270w | 12V DC - 60 amps 720W | 28,500 lumens | 57,000 lumens | 8" x 63" x 11" 605 mm x 1,600 mm x 280 mm | 66" x 42" x 11" 1,675 mm x 1,600 mm x 280 mm | 65 lbs 35 kg |
LEDs
FireTech Helios
FRC Radiant Command
Whelen Pioneer
Plus™ PFP2
Whelen Pioneer
Plus™ PFP2
| DC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SS322D-CH | (2) FireTech Helios 60W | 12V DC – 20 amps 240W | 14,000 lumens | 28,000 lumens | 9" x 42" x 30" 230 mm x 1,065 mm x 765 mm | 43" x 45" x 30" 1,090 mm x 1,145 mm x 760 mm | 45 lbs 20 kg |
| SS322D-FR | (2) FRC Radiant Command 120W | 12V DC – 20 amps 360W | 17,000 lumens | 34,000 lumens | 9" x 42" x 30" 230 mm x 1,065 mm x 765 mm | 43" x 45" x 30" 1,090 mm x 1,145 mm x 760 mm | 45 lbs 20 kg |
| SS322D-W2 | (2) Whelen Pioneer Plus PFH2 150W | 12V DC – 34 amps 420W | 20,261 lumens | 40,522 lumens | 8" x 42" x 30" 205 mm x 1,070 mm x 760 mm | 43" x 45" x 30” 1,090 mm x 1,145 mm x 760 mm | 45 lbs 20 kg |
| AC/DC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SS322A-CH | (2) FireTech Helios 60W | 12V DC + 115V or 230V AC 240W | 14,000 lumens | 28,000 lumens | 9" x 42" x 30" 230 mm x 1,065 mm x 760 mm | 43" x 45" x 30" 1,090 mm x 1,145 mm x 760 mm | 45 lbs 20 kg |
| SS322A-FR | (2) FRC Radiant Command 120W | 12V DC + 115V or 230V AC 360W | 17,000 lumens | 34,000 lumens | 9" x 42" x 30" 230 mm x 1,065 mm x 760 mm | 43" x 45" x 30" 1,090 mm x 1,145 mm x 760 mm | 45 lbs 20 kg |
| SS322A-W2 | (2) Whelen PFP2 150W | 12V DC + 115V or 230V AC 400W | 20,442 lumens | 40,884 lumens | 9" x 42" x 30" 230 mm x 1,065 mm x 760 mm | 42.5" x 45 " x 30" 1,080 mm x 1,145 mm x 760 mm | 45 lbs 20 kg |
QUARTZ HALOGEN

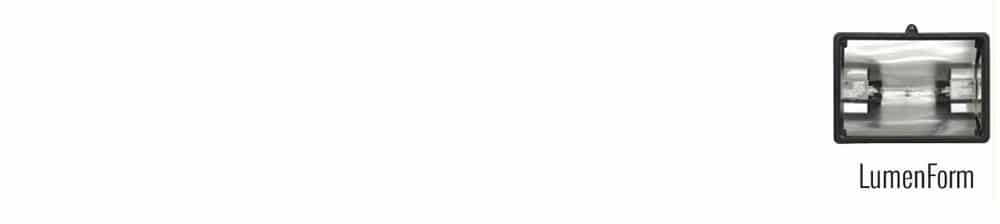

LumenForm
| AC/DC | Lighting | Power Requirements | Output (Per Light) | Total Output | H×W×D (Nested) | H×W×D (Upright) | Weight |
|---|---|---|---|---|---|---|---|
| SS335A-LF | (3) Lumenform 500W | 12V DC + 115V or 230V AC 1,620W | 11,100 lumens | 33,300 lumens | 9" x 42" x 26" 230 mm x 1,065 mm x 660 mm | 42.5" x 44.75 " x 26" 1,080 mm x 1,135 mm x 660 mm | 40 lbs 18 kg |
| SS345A-LF | (4) Lumenform 500W | 12V DC + 115V or 230V AC 2,120W | 11,100 lumens | 44,400 lumens | 8" x 42" x 25" 205 mm x 1,065 mm x 635 mm | 44" x 44.75" x 25" 1,120 mm x 1,135 mm x 635 mm | 45 lbs 20 kg |
