KL SERIES

KNIGHT SERIES LIGHT TOWERS WITH 7.5’ REACH

KL SERIES: MID-SIZE UNIT

Looking for a mid-size light tower? The Knight Series delivers a reach of nearly 7.5’ from its base. These towers are manufactured using aircraft-grade aluminum for lightweight strength, while their mid-size footprint makes them ideal for apparatus with limited space, making them a favorite among mobile lighting towers. The Knight Light can rotate 360 degrees and tilt, raise and lower with ease to direct scene lighting. Unlike truck-mounted perimeter LEDs, this gives crews the ability to elevate all of the usable light.

The KL Series is predominately an LED light tower; however, quartz halogen bulbs are available in the six-head configuration.

6-Head Towers

4-Head Towers

KNIGHT SLIM

VIRTUALLY DEMO THIS TOWER'S MOVEMENTS

MEET COMMAND LIGHT’S SLIMMEST TOWER

The KL Series also includes the Knight Slim, Command Light’s narrowest design. This light tower stows flat at just 12” x 13” x 53”, making it perfect for tight dunnage areas or high-side aerial compartments. This compact tower packs a total output of 70,000 lumens thanks to FireTech fixtures.

VIEW DETAILS

KL specifications

click the chart's model number for that unit's individual spec sheet

LEDs

Akron Revel SL

FireTech Helios

FRC Radiant Command

FRC Spectra

FRC Spectra Max

Whelen Pioneer
Plus™ PCH1

Whelen Pioneer
Plus™ PFP2

Whelen Pioneer
Plus™ PSP1

Scroll right for full chart.

AC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
KL415A-CH	FireTech Helios 60W	115V or 230V AC 660W	14,000 lumens	84,000 lumens	12" x 47" x 28" 305 mm x 1,195 mm x 710 mm	87.5" x 52 " x 28" 2,225 mm x 1,320 mm x 710 mm	165 lbs 75 kg
KL415A-FR	FRC Radiant Command 120W	115V or 230V AC 1,020W	17,000 lumens	102,000 lumens	12" x 47" x 29" 305 mm x 1,195 mm x 735 mm	87.5" x 52 " x 29" 2,225 mm x 1,320 mm x 735 mm	165 lbs 75 kg

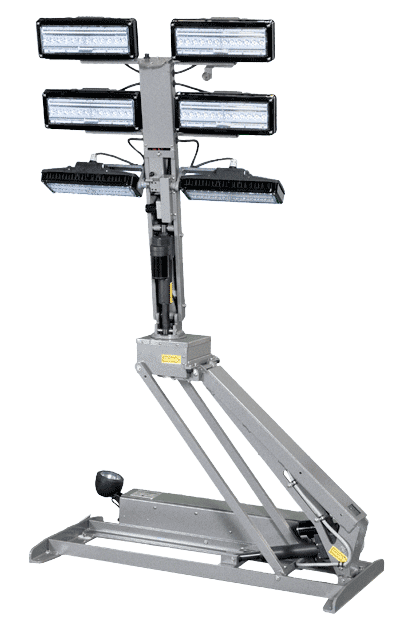

KL415A-FS	FRC Spectra 220W	115V or 230V AC 1,620W	20,000 lumens	120,000 lumens	12" x 47" x 34" 305 mm x 1,195 mm x 865 mm	87.5" x 52 " x 34" 2,225 mm x 1,320 mm x 865 mm	165 lbs 75 kg
KL415A-FX	FRC Spectra Max 335W	115V or 230V AC 2,310W	28,000 lumens	168,000 lumens	12" x 47" x 34" 305 mm x 1,195 mm x 865 mm	87.5" x 52 " x 34" 2,225 mm x 1,320 mm x 865 mm	165 lbs 75 kg
KL415A-W2	Whelen Pioneer Plus PFP2 150W	115V or 230V AC 1,200W	20,442 lumens	122,652 lumens	12" x 47" x 34" 305 mm x 1,195 mm x 865 mm	87.5" x 52" x 34" 2,225 mm x 1,320 mm x 865 mm	165 lbs 75 kg
KL408A-W1	Whelen Pioneer Plus PSP1 75W	115V or 230V AC 750W	8,517 lumens	51,102 lumens	12" x 47" x 23" 305 mm x 1,195 mm x 585 mm	87.5" x 52" x 23" 2,225 mm x 1,320 mm x 585 mm	165 lbs 75 kg

DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
KL415D-AR	Akron Revel SL 110W	12V DC – 80 amps 960W	14,000 lumens	84,000 lumens	12" x 47" x 23" 305 mm x 1,195 mm x 585 mm	87.5" x 52" x 23" 2,225 mm x 1,320 mm x 585 mm	165 lbs 75 kg
KL415D-CH	FireTech Helios 60W	12V DC – 55 amps 660W	14,000 lumens	84,000 lumens	12" x 47" x 28" 305 mm x 1,195 mm x 710 mm	87.5" x 52 " x 28" 2,225 mm x 1,320 mm x 710 mm	165 lbs 75 kg
KL408D-W1	Whelen Pioneer Plus PCH1 75W	12V DC – 63 amps 750W	10,130 lumens	60,780 lumens	12" x 47" x 23" 305 mm x 1,195 mm x 585 mm	87.5" x 52" x 23" 2,225 mm x 1,320 mm x 585 mm	165 lbs 75 kg

QUARTZ HALOGEN

FRC Focus

LumenForm

Scroll right for full chart.

AC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
KL475A-FF	FRC Focus 750W	115 or 230V AC 4,800W	19,600 lumens	117,600 lumens	13” x 47” x 25” 330 mm x 1,195 mm x 635 mm	87.5” x 52 “ x 25” 2,225 mm x 1,320 mm x 635 mm	165 lbs 75 kg
KL450A-LF	Lumenform 500W	115 or 230V AC 3,300W	11,100 lumens	66,600 lumens	12” x 47” x 23” 305 mm x 1,195 mm x 585 mm	87.5” x 52 “ x 23” 2,225 mm x 1,320 mm x 585 mm	165 lbs 75 kg

LEDs

FRC Radiant Command

FRC Spectra

FRC Spectra Max

Lightforce HTX

Whelen Pioneer
Plus PFP2

Whelen Pioneer
Plus PSP1

FRC Radiant Command

FRC Spectra

FRC Spectra Max

Lightforce HTX

Whelen Pioneer
Plus™ PFH2

Scroll right for full chart.

AC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
KL415A-FX4	Spectra-Max 335W	115V or 230V AC 1,640W	28,000 lumens	112,000 lumens	12” x 47” x 34” 305 mm x 1,195 mm x 865 mm	87.5” x 52 “ x 34” 2,225 mm x 1,320 mm x 865 mm	165 lbs 75 kg

DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
KL415D-FR	FRC Radiant Command 120W	12V DC – 65 amps 780W	17,000 lumens	68,000 lumens	12” x 47” x 29” 305 mm x 1,195 mm x 735 mm	87.5” x 52" x 29” 2,225 mm x 1,320 mm x 735 mm	165 lbs 75 kg
KL415D-FS	FRC Spectra 220W	12V DC – 98 amps 1,180W	20,000 lumens	80,000 lumens	12” x 47” x 34” 305 mm x 1,195 mm x 865 mm	87.5” x 52" x 34” 2,225 mm x 1,320 mm x 865 mm	165 lbs 75 kg
KL415D-FX	FRC Spectra Max 230W	12V DC – 100 amps 1,220W	28,000 lumens	112,000 lumens	12” x 47” x 34” 305 mm x 1,195 mm x 865 mm	87.5” x 52" x 34” 2,225 mm x 1,320 mm x 865 mm	165 lbs 75 kg
KL415D-LX	Lightforce HTX LED/HID 150W	12V DC – 75 amps 900W	13,500 lumens	54,000 lumens	14” x 47” x 31” 355 mm x 1,195 mm x 785 mm	87.5” x 52" x 31” 2,225 mm x 1,320 mm x 785 mm	165 lbs 75 kg
KL415D-W2	Whelen Pioneer Plus PFH2 - 150W	12V DC – 75 amps 900W	20,261 lumens	81,044 lumens	12” x 47” x 34” 305 mm x 1,195 mm x 865 mm	87.5” x 52" x 34” 2,225 mm x 1,320 mm x 865 mm	165 lbs 75 kg

LEDs

Scroll right for full chart.

AC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
KL409A-H4	(2) FireTech – 270w (2) FireTech – 60w	115V AC - 960w	270w: 28,500 60w: 6,500	70,000 lumens	12" x 53" x 13" 305 mm x 1,345 mm x 330 mm	87.5" x 53" x 13" 2,225 mm x 1,345 mm x 330 mm	165 lbs 75 kg

DC	Lighting	Power Requirements	Output (Per Light)	Total Output	H×W×D (Nested)	H×W×D (Upright)	Weight
KL409D-H4	(2) FireTech – 270w (2) FireTech – 60w	12V DC - 960w	270w: 28,500 60w: 6,500	70,000 lumens	12" x 53" x 13" 305 mm x 1,345 mm x 330 mm	87.5" x 53" x 13" 2,225 mm x 1,345 mm x 330 mm	165 lbs 75 kg
